INTRODUCTION

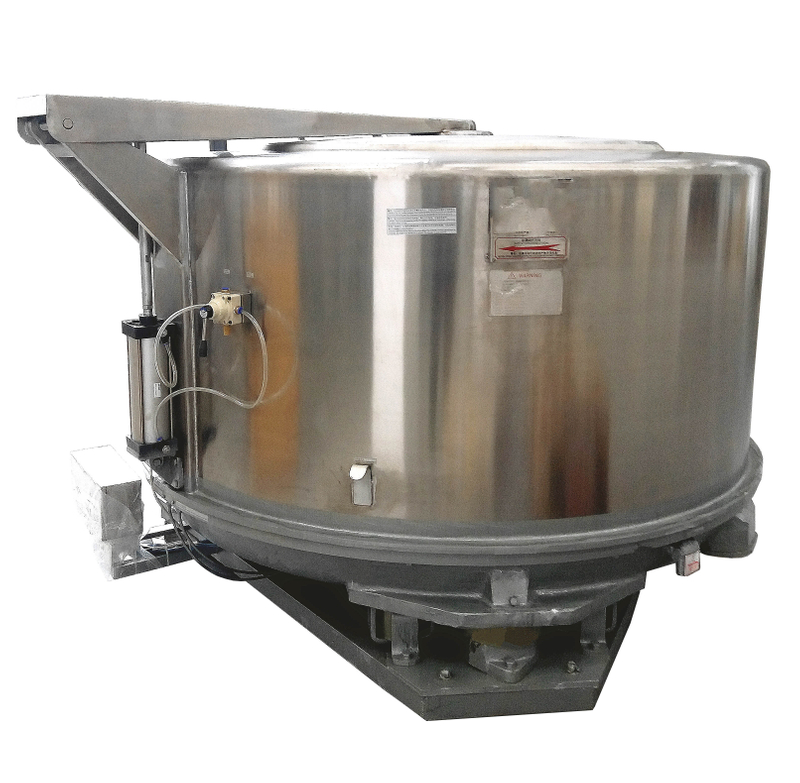

The centrifugal hydro extractor mainly uses centrifugal force to eject the remaining moisture from the fabric in the inner tank. With a stable dehydrated inner body, the fabric can achieve excellent dehydration rate.
FEATURES
- High loading capacity, high dewatering rate with low power consumption
- Bottom stand is made by heavy iron casting for more stable and silent during high speed rotation
- Machine body and inner basket are made by high quality SUS 304 stainless steel
- Quality inverter control for timing, automatic braking and variable revolving speed control requirement
- Pneumatic lid open/close device for easy and safe operation
- Super silence and super balance for excellent working environment
- Separate stainless steel fabric loading and unloading device for more convenient operation
- Fully controlled by electrical apparatus without machine brakes thus greatly reduce mechanical maintenance
SPECIFICATIONS
MODEL | HY-800 | HY-1200 | HY-1500 | HY-1800 | HY-2000 |
INNER BASKET | φ800Xh500 | φ1200XH600 | φ1500XH600 | φ1800XH800 | φ2000XH800 |
DRY CAPACITY | 50KGS | 110KGS | 200KGS | 320KGS | 400KGS |
MAX. WET CAPACITY | 150KGS | 350KGS | 600KGS | 1000KGS | 1200KGS |
POWER (KW) | 2.2 | 5.5 | 10 | 15 | 18.5 |
ROTATION SPEED | 750-960 RPM | 750-960 RPM | 750-960 RPM | 600-750 RPM | 600 RPM |
DIMENSION | 1450X1150X1080 | 1800X1600X1220 | 2150X1800X1300 | 2550X2200X1530 | 2900X2400X1650 |
