HO-600
HANTEX

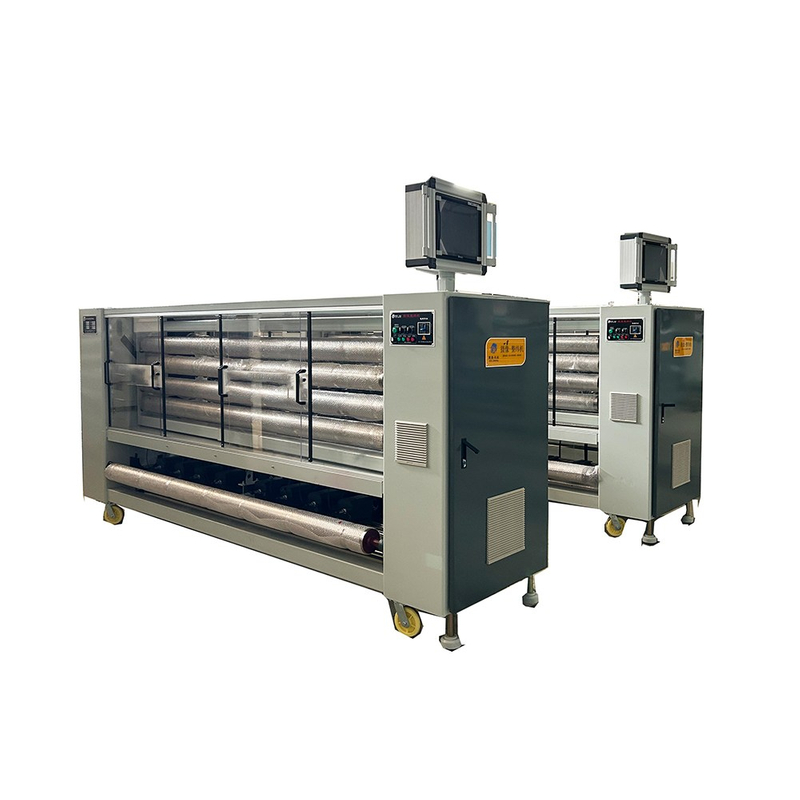

Optical Weft Straightener
Introduction:
optical weft straightener is user-friendly. It is easy to operate and requires minimal maintenance, allowing for seamless integration into your production process.
Choose our optical weft straightener for a reliable and efficient solution that meets the highest industry standards. Experience enhanced fabric production and achieve superior results with our professional-grade optical weft straightener.
Application:
Stenter, sanforizer, flat printing machine, rotary printing machine, digital printing machine, coating machine etc.
Technical specifications:
Model | HO600 |
Machine width | 2000-3800mm |
Working wdith | 1800-3600mm |
Weft density to be detected | 10-350 picks/inch |
Straightening range | Bias weft ≤30% fabric width and no wider than 750mm in max |
Numbers of sensors | 4-10 pcs |
Signal acquisition mode | Infrared reflectance |
Detect angle | Max. ±19 degree |
Detect accuracy | ±0.1 degree |
Display | 10’’ touch screen controller |
Weight | 1500 kg |
Optical Weft Straightener
Introduction:
optical weft straightener is user-friendly. It is easy to operate and requires minimal maintenance, allowing for seamless integration into your production process.
Choose our optical weft straightener for a reliable and efficient solution that meets the highest industry standards. Experience enhanced fabric production and achieve superior results with our professional-grade optical weft straightener.
Application:
Stenter, sanforizer, flat printing machine, rotary printing machine, digital printing machine, coating machine etc.
Technical specifications:
Model | HO600 |
Machine width | 2000-3800mm |
Working wdith | 1800-3600mm |
Weft density to be detected | 10-350 picks/inch |
Straightening range | Bias weft ≤30% fabric width and no wider than 750mm in max |
Numbers of sensors | 4-10 pcs |
Signal acquisition mode | Infrared reflectance |
Detect angle | Max. ±19 degree |
Detect accuracy | ±0.1 degree |
Display | 10’’ touch screen controller |
Weight | 1500 kg |
