RAM-X
HANTEX

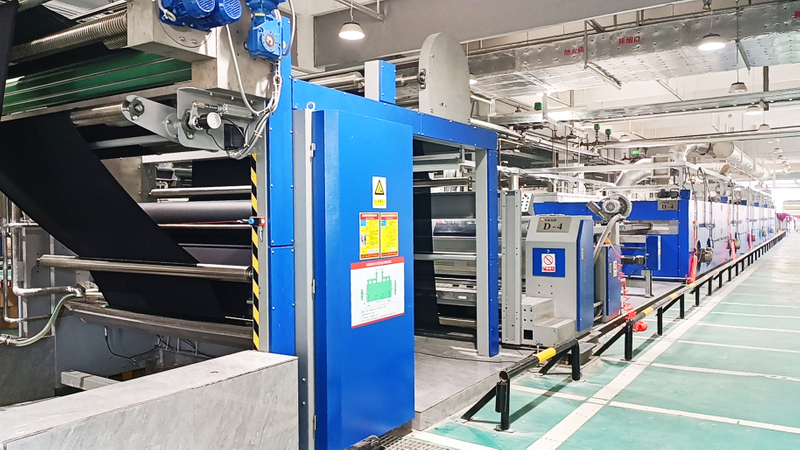

Knit Fabric Stenter Machine
Introduction
Textile Stenter Machine is a specialist setting chamber used in the textile dyeing industry for drying and heat setting treatment after wet processing.
It include drying chambers, centering device, selvedge tracing, temperature controlling, moisture controlling, cooling and batching device etc. Thanks to the high automation system combined with mechanism device, fabric can be setted to a ideal dimension and target result.
Specification:
Model | RAM-X |
Machine width | 2000-3800mm |
Working width | 1800-3600mm |
Chamber | 4-12 chambers |
Heating source | Gas, thermal oil, steam |
Speed | 5-120m/min |
Rail | Horizontal type rail |
Chain | Pin chain, Clip chain |
Entry | Horizontal/ Vertical |
Exit | Plaiter/ Batching device |
J box | Optional |
Selvedge gumming | Optional |
Selvedge cutting | Optional |
Cooling | Air cooling / Cylinder cooling |
Padder | Driving roller 95 degree Shao A rubber coated roller; Driven roller 85 degree Shao A rubber coated roller |
Temperature | Up to 250 degree |
Product Features
Each chamber length 3000mm
Natural gas, thermal oil or steam can be used as heating source
The insulation panel is adopt with high density rock wool, thickness 150mm
Special designed nozzles for different kinds of fabrics
Individual width adjust device
PLC+ Inverter automation system
Touch screen controller, machine speed, width, temperature can be set easily
Single padder or double padder system
E+L selvedge tracing device
E+L selvedge cutting device (Optional)
Inner chamber moisture can be monitored
Easily operation system
Machine Flowchart:
Fabric Entry → Padder → Automatic Weft Straightener → Dancing roller → Operation platform → Chain, pinning, overfeeding → Selvedge gumming device→ Heat setting chamber → Air cooling → Selvedge cutting device → Fabric exit
Product Application
Hot air stenter machine is a kind of equipment for fabric setting, mainly used in fabric processing in textile industry. The hot air setting machine can be used in the fabric setting, drying, ironing and other processes in the textile industry. It can keep the fabric in a stable size and shape, and improve the quality and appearance of the fabric.
