SLITEX01
HANTEX

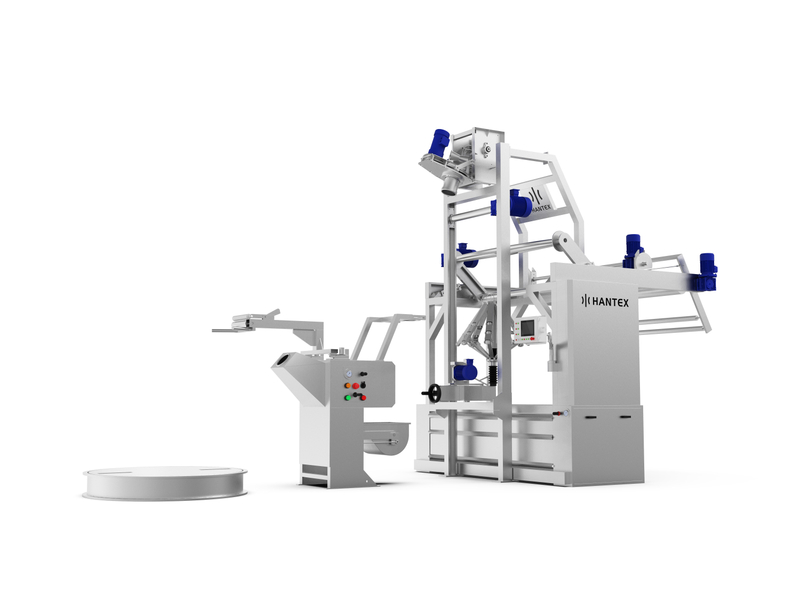

Rope Opener Detwisting Slitting Line For Woven Fabric
Introduction:
Rope opener detwisting slitting line major widely suitable for knitted , woven, warp knit, terry towel fabrics after dyeing rope opening purpose. It can be connected with different kind of unit machine, such as hydro extractor, slitting device, Enzyme washing tank, padder etc.
Features:
- Fully automatic system with PLC, Inverter system
- Machine body: SUS304
- Detwister unit
- Equipped with centering unit
- Touch screen control
Specification:
MODEL | SLITEX01 |
MACHINE WIDTH | 2600MM |
WORKING WIDTH | 2400MM |
MAX. SPEED | 5-100M/MIN |
VOLTAGE | 380V/50HZ |
WORKING AIR PRESSURE | 4-6 BAR |
MATERIAL | STAINLESS STEEL 304 |
FABRIC EXIT | PLAITER SYSTEM |
