SLITEX02
HANTEX

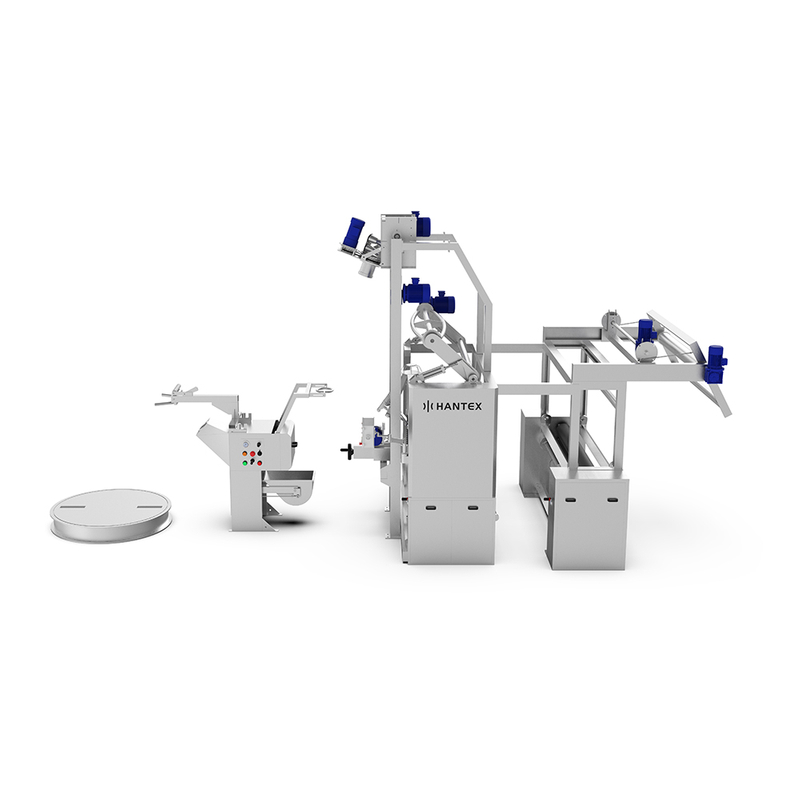

Tubular Slitting Squeezing Machine
Introduction:
“SLITEX”Tubular Knit Slitting Machine, a tubular cutting solution designed for the precise and efficient slitting of tubular knit fabrics. This professional-grade machine is specifically engineered to cater to the needs of the textile industry, particularly for wet condition slitting, enzyme washing, and padding purposes.
With its advanced technology and innovative features, our Tubular Knit Slitting Machine ensures exceptional performance and accuracy. It effortlessly handles tubular knit fabrics, open width knit rope opening and padding.
Features:
- The main can be used for wet tubular knit slitting and squeezing purpose
- High efficiency slitting device
- Fabric detwister ensure well fabric opening result and delivery a uniform fabrics.
- Between the main machine and padder, there is a tension roller, eaisly for machine synchronize and ensure a low tension knit fabric in whole production process
Technical specifications:
| Model | SLITEX02 |
Machine width | 2600mm |
Working width | 2400mm |
Max. Speed | 5-100m/min |
Voltage | 380v/50hz |
Working air pressure | 4-6 bar |
Squeezing pressure | 2-4 bar |
Material | Stainless steel 304 |
Padder | 95 & 85 Shao A degree hardness rubber |
Fabric exit | Plaiter system |
Machine application:
· Tubular knit fabric slitting & squeezing process
· Open width knit fabric rope opening & squeezing process

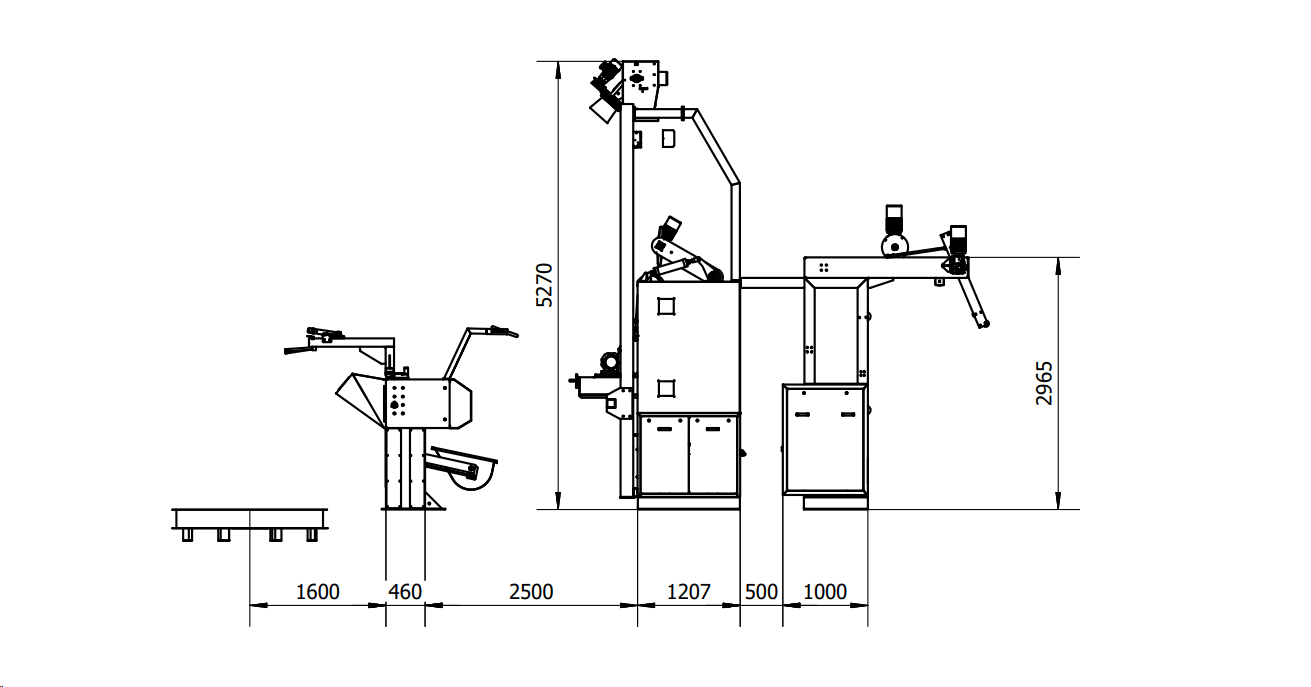

Machine layout:
Tubular Slitting Squeezing Machine
