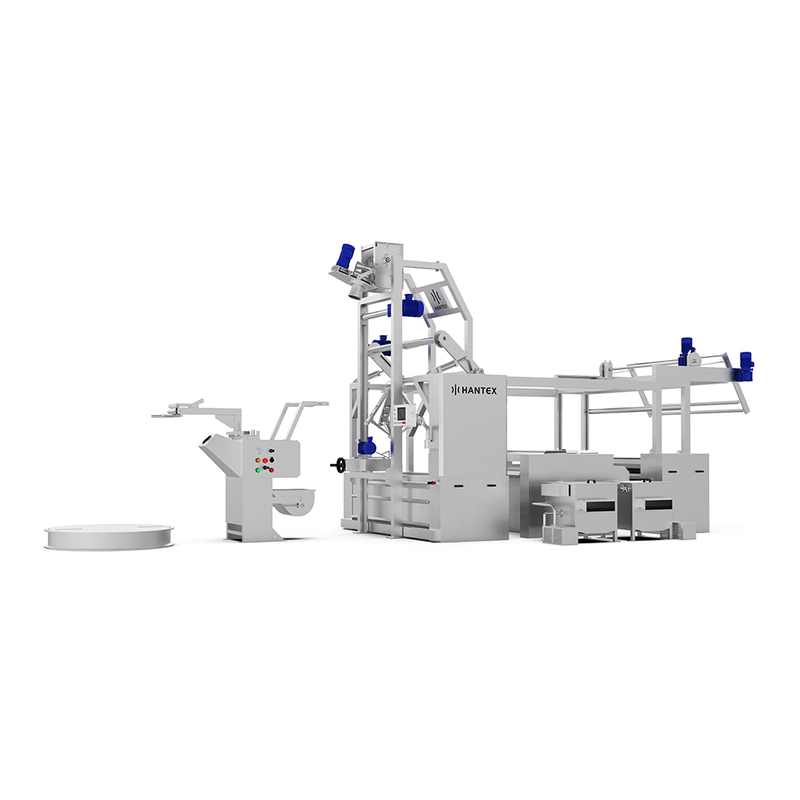

Tubular Knit Slitting Finishing Machine

Tubular Knit Slitting Finishing Machine

Introduction:

“SLITEX” series tubular knit slitting finishing machine is major used for knit after dyeing, bleaching & washing process. The machine's wet condition slitting capability allows for seamless processing of tubular knit fabrics, even in their damp state. This feature ensures minimal fabric distortion and maintains the integrity of the material, resulting in high-quality finished products.

Additionally, our Tubular Knit Slitting Machine is equipped with specialized functionalities for enzyme washing and padding purposes. This allows for efficient  remove enzymes and padding agents, enhancing the overall quality and appearance of the fabric.

Features:

- A pre-padder at the entry of main machine, reduce the fabric water content before entry the machine

- High efficiency fabric rope opener

- Tubular knit slitting device, ensure a high quality and uniform slitting result

- Fabric enzyme washing, remove the residual enzyme and filtering it efficiency

- Machine max. speed can be up to 100m/min

- Double roller squeezer padder, high efficiency squeezing result

Technical Specification:

1. Model: Slitex03


2. Machine width: 2600mm

3. Working width: 2400mm

4. Machine speed: 5-100m/min

5. Automatic slitting device


6. Washing tank: single washing tank or double washing tank

7. Filter tank: Ensure high efficiency dust remove result

8. 1 set of padder


Machine application:

1. Tubular knitted fabric after dyeing slitting & enzyme washing process.

2. Open width knitted fabric rope opening and washing, squeezing.

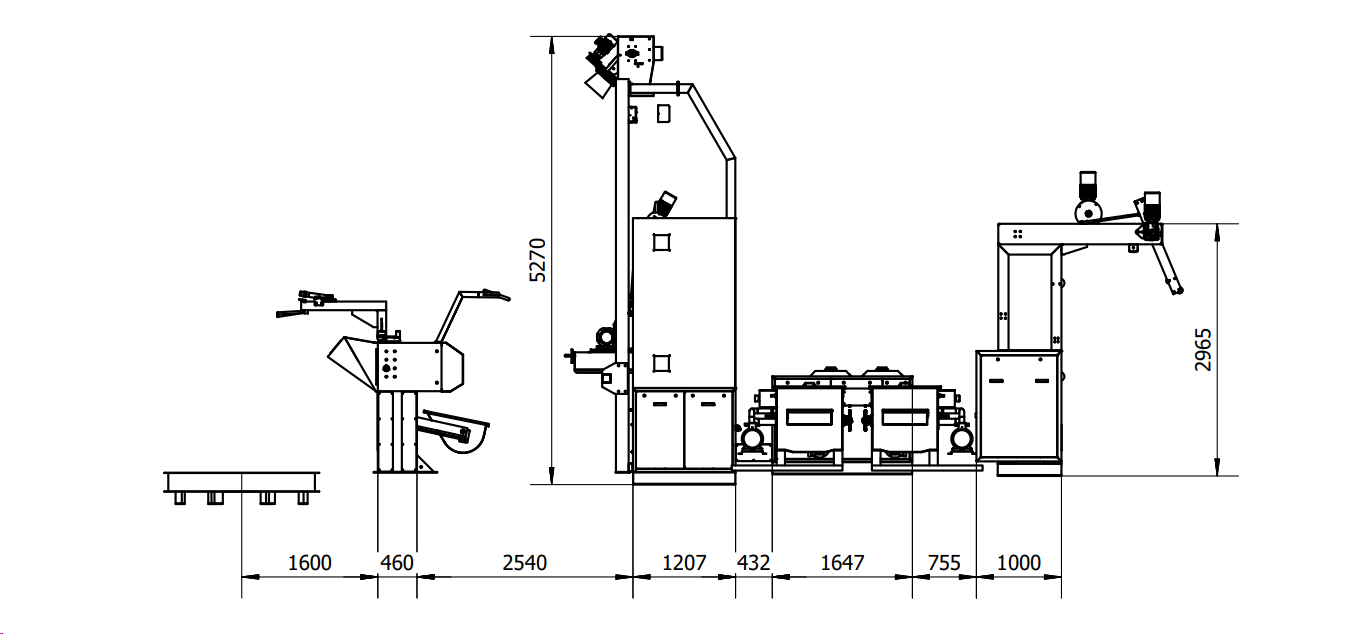

Machine layout
