SLITEX03
HANTEX
INTRODUCTION:
“SLITEX”Tubular Knit Slitting Machine and experience the pinnacle of efficiency, precision, and versatility in fabric slitting. With its professional-grade performance and cutting-edge features, this machine is a must-have for textile dyeing finishing industry professional seeking to optimize their production processes.
FEATURES:
· Weighting pre squeezer unit is major used for tubular fabric inlet side, it can help to squeezing the water before entry the main machine, the up and down j-box can helps to synchronize the speed with detwist unit
· The detwist unit is major used for rope fabric detwisting process, equipped with detwist wheel, main driving detection wheel and sensors, which helps to achieve a perfect detwisting result.

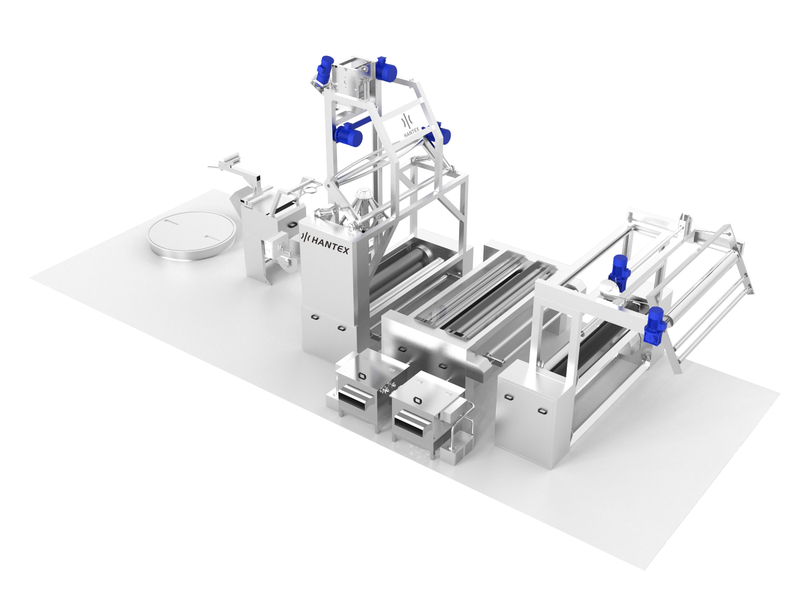

· The main machine is include height adjustable frame, fabric beater, centering device, expander roller, fabric slitting device, electrical cabinet etc.
· Enzyme washing tank is installed after rope opening and slitting process, its major suitable for fabric surface washing after enzyme washing treatment.
· Open width padder is major used after washing squeezing, which can maximize the residual moisture inside the fabric and maintain a uniform pick up rate of the fabric.
TECHNICAL SPECIFICATIONS
MODEL | SLITEX03 |
MACHINE WIDTH | 2600MM |
WORKING WIDTH | 2400MM |
MAX. SPEED | 5-100M/MIN |
VOLTAGE | 380V/50HZ |
WORKING AIR PRESSURE | 4-6 BAR |
SQUEEZING PRESSURE | 2-4 BAR |
WASHING TANK & FILTERING | DOUBLE WASHING TANK WITH DOUBLE FILTERING DEVICE |
MATERIAL | STAINLESS STEEL 304 |
PADDER | 95 SHORE A DEGREE DRIVING ROLLER 85 SHORE A DEGREE DRIVEN ROLLER |
FABRIC EXIT | PLAITER SYSTEM |
MACHINE APPLICATION:
1. TUBULAR KNITTED FABRIC AFTER DYEING SLITTING & ENZYME WASHING PROCESS.
2. OPEN WIDTH KNITTED FABRIC ROPE OPENING AND WASHING, SQUEEZING
